SE Bikes Killer Quad 27.5"

SE Bikes Killer Quad 27.5"
  • Color: High Polish Silver
$1,049.99
Color: High Polish Silver
Size: One Size
Please select options Unavailable

Details

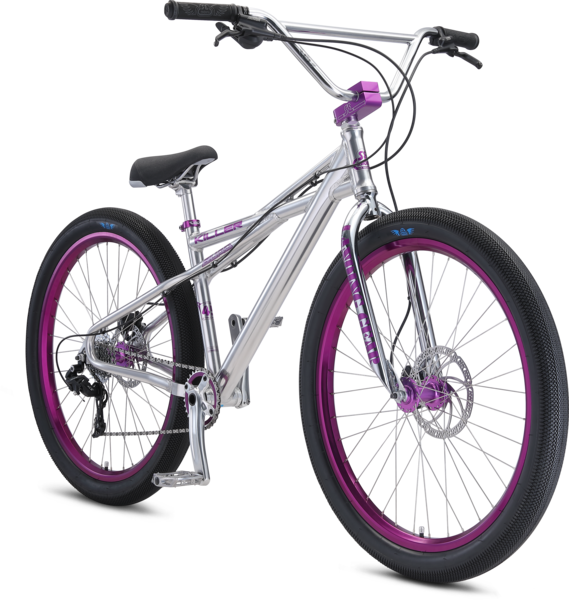

Now this is one KILLER ride! The all-new 27.5" Killer Quad is perfection on wheels. This bike has everything you'd want and more. It is built around a unique Quad frame design featuring an oversized downtube, integrated headset, super stiff BB yoke, and a legendary looptail rear end. It comes equipped with a microSHIFT XLE 1x10 drivetrain, Tektro hydraulic disc brakes, and wide 27.5" x 2.5" Vee Speedster tires. When you want to go for a killer ride, this is definitely the bike to have.

KEY FEATURES:
- 6061 Aluminum Killer Quad frame with oversized downtube, integrated headset, and looptail rear end
- Full Cr-Mo Landing Gear forks |SE Racing forged alloy 2-piece cranks with 24mm hollow alloy spindle, external sealed bearing bottom bracket, and alloy chainring
- FSA Orbit CE integrated sealed bearing headset
- Vee Tire Co x SE Racing 72tpi Speedster 27.5" x 2.5" tires
- MicroShift XLE RD-M61S 1x10 short-cage derailleur
- Sealed-bearing rear alloy hub with double-wall rims and microSHIFT 11-32T 10-speed cassette
- Tektro hydraulic disc brakes with easy-to-adjust open system, dual piston, 160mm rear rotor, 180mm front rotor
- SE Flyer seat with bottle opener
- 33.9 pounds

Suggested Rider Size: 5'3"+ (160cm+)

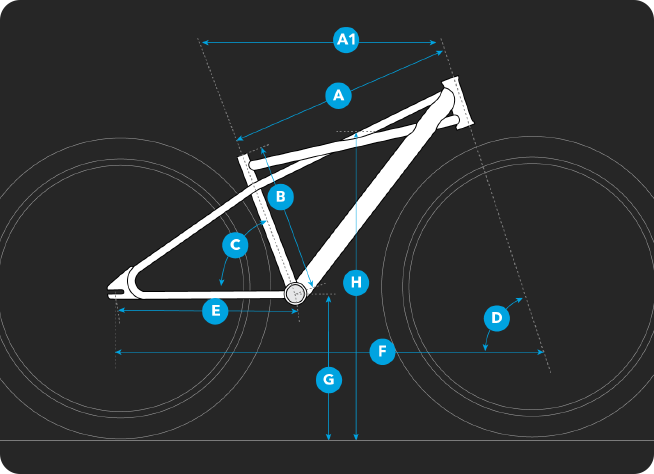

Geometry

Sizes:
ATop Tube, Actual22.8"
B Seat Tube, Center To Top 15.7"
C Seat Tube Angle 73°
D Head Tube Angle 71°
E Chainstay Length 17.4"
F Wheelbase 42.3"
G Bottom Bracket Height 11.9"
H Standover 28.2"
Stem 55mm
Handlebar Width 31"
Crank 175mm
Wheel Size 27.5"
Seat Post Diameter 27.2mm

Specs

Frame 6061 Aluminum, Single Downtube Killer Quad Design, Internally-machined Integrated Head Tube, Looptail Rear End, Fixed Dropouts, 73mm Euro Bottom Bracket, 135mm Spaced Dropouts, Disc Brake Tabs, Removable Derailleur Hanger
Fork Landing Gear, Full Cr-Mo, 419mm Axle to Crown, 29mm Offset, 110mm Spaced Dropouts
Wheels Alloy 36H Nutted Hubs, 135mm Sealed Rear Hub, 110mm Front Hub, Double-wall Rims, 11-32T 10-speed Cassette, Stainless Spokes
Tires Vee Tire Co x SE Racing Speedster, 72TPI, 27.5" x 2.5" Front & Rear
Crankset SE Racing 175mm Forged Alloy 2-pc Cranks, External Sealed Euro Bottom Bracket, 24mm Hollow Alloy Spindle, 32T Alloy Chainring
Shifters MicroShift XLE Xpress SL-M850-R, 1x10, Sealed Bearing, Alloy Lever
Rear Derailleur MicroShift XLE RD-M61S, 1x10, Short Cage
Cassette/Freewheel MicroShift XLE CS-H100, 10-speed, 11-32T
Chain KMC S1
Brakes Tektro HD-M285, Hydraulic Disc, Easy to Adjust Open System, Dual Piston, Automatic Caliper Positioning, 180mm Front Rotor, 160mm Rear Rotor
Brake Levers Tektro HD-M285, 2-Finger Alloy, Front & Rear
Handlebars Big Honkin' Cr-Mo Cruiser Bar, 31" x 7", 12° Backsweep, 2° Upsweep
Tape/Grips SE Racing Flangeless Mushroom Wing Grips w/ SE Rubber End Plugs
Stem Retro Alloy Top-Load w/ Engraved SE Logo on Top & Sides, 55mm Reach
Headset FSA Integrated Orbit CE, Sealed 1-1/8"
Seatpost Micro-Adjust Alloy, 27.2mm
Saddle SE Flyer Seat w/ Custom SE Bottle Opener Brace
Pedals Wellgo Low-profile Platform
Accessories & Extras Alloy Valve Caps, Removable Derailleur Hanger

* Subject to change without notice.

Videos

Part Numbers

Option UPC MPN Store SKU
High Polish Silver / One Size 785749216966 29221344727 210000024209
