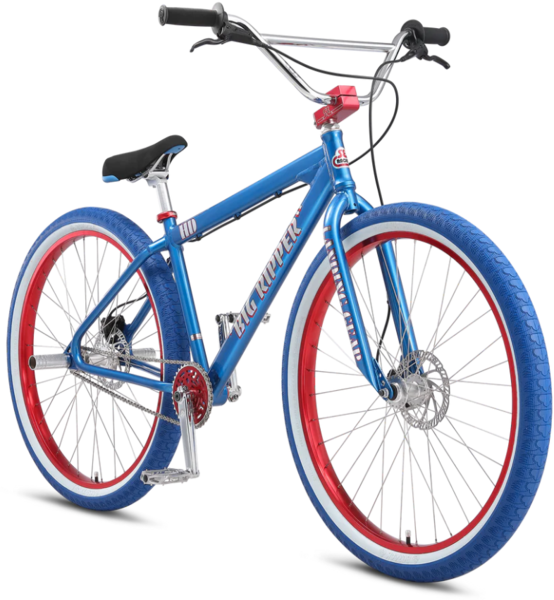

SE Bikes Big Ripper HD 29"

SE Bikes Big Ripper HD 29"
  • Color: High Def Green
  • Color: Blue Sparkle
  • Color: Blue Sparkle
  • Color: Blue Sparkle
$799.99 - $999.99
Color:
Size: 23.6-inch
Please select options Unavailable
This item is not permitted to be shipped, however it can be purchased online and picked up in store. We will notify you when it's ready for pick up.

Details

We really upped the ante this year with the introduction of the 29” Big Ripper HD. This bad boy comes equipped with Tektro hydraulic disc brakes and a LOUD 9-pawl 16T freewheel. The frame features an internally machined integrated head tube, Floval Tubing, looptail rear end, American bottom bracket, and classic PK Ripper style wishbone plate. Combine all of this with the super grippy SE Bozack tires and this very well may be the raddest Big Ripper yet.

Key Features
- Retro 6061 aluminum Big Ripper frame with Floval tubing, internally machined integrated head tube, looptail rear end, American bottom bracket, and classic PK Ripper style wishbone plate
- Full Cr-Mo Landing Gear forks
- FSA Orbit CE integrated sealed bearing headset
- Double-wall rims with sealed-bearing and high-flange hubs and LOUD 9-pawl 16T freewheel
- SE 3-piece V-Ridge cranks with alloy SE sprocket
- Authentic ODI Mushroom II grips with 45 Years of Radness SE Donuts
- SE Bozack 29” x 2.4” tires
- SE Flyer seat with SE bottle opener
- Tektro hydraulic disc brakes with easy to adjust open system, dual piston, 160mm rotors
- SE 45 Year Anniversary padset
- SE Wheelie pegs
- 33.5 pounds

Geo Chart

Geometry Chart:
Size23.6-inch
TOP TUBE, ACTUAL (IN) 23.6
SEAT TUBE, CENTER TO TOP (IN) 16.9
SEAT TUBE ANGLE 71°
HEAD TUBE ANGLE 71°
CHAINSTAY LENGTH (IN) 18
WHEELBASE (IN) 43.4
BOTTOM BRACKET HEIGHT (IN) 12.24
STANDOVER (IN) 30.9
SUGGESTED RIDER SIZE 5'5"+ (165cm+)
STEM (mm) 48
HANDLEBAR WIDTH (IN) 30
CRANK (mm) 175
WHEEL SIZE (IN) 29
SEAT POST DIAMETER (mm) 27.2

Specs

Frame 6061 Aluminum Floval Tubing, Internally-machined Integrated Head Tube, Looptail Rear End, 68mm American Bottom Bracket, Wide Rear Stays, Retro Dropouts
Fork Landing Gear, Full Cr-Mo, Disc Tabs
Wheels SE Racing Alloy 36H Disc Hubs, 100mm Front Hub, 135mm Sealed Rear Hub, w/ Double-wall Rims, 16T 9-Pawl LOUD Freewheel
Tires SE Bozack, Street Proven Multi Purpose Compound, Wrap Around Urban Tread Pattern, Grooved SE Wing Logo, 29" x 2.4" Front & Rear
Crankset SE V-Ridge 3-pc Cr-Mo Cranks, 175mm, Sealed American Bottom Bracket, 160mm Spindle Length, 19mm Spindle Diameter, 36T Alloy SE Racing Sprocket
Chain KMC S1
Brakes Tektro HD-M285, Hydraulic Disc, Easy to Adjust Open System, Dual Piston, Automatic Caliper Positioning, 160mm Rotors
Brake Levers Tektro HD-M285, 2-Finger Alloy, Front & Rear
Handlebars Big Honkin' Cr-Mo Cruiser Bar, 29" x 7", 12° Backsweep, 2° Upsweep
Tape/Grips Special Edition ODI Mushroom II Dual-Ply Grips, Made in USA, w/ 45 Years of Radness SE Donuts
Stem Retro Alloy Top-Load w/ Engraved SE Logo on Top & Sides, 55mm Reach
Headset FSA Integrated Orbit CE, Sealed 1-1/8"
Seatpost Micro-Adjust Alloy, 27.2mm
Saddle SE Flyer Seat w/ Custom SE Bottle Opener Brace
Pedals Wellgo Low-profile Platform
Accessories & Extras 45 Years of SE Radness Padset, Alloy Valve Caps, SE Wheelie Pegs

* Subject to change without notice.

Videos

Part Numbers

Option UPC MPN Store SKU
High Def Green / 23.6-inch 785749216911 29221284129 210000024206
Blue Sparkle / 23.6-inch 785749238074 29231294629 210000026217
