Eastern Bikes Javelin

Eastern Bikes Javelin
  • Color | Size: Neon Yellow | 20-inch

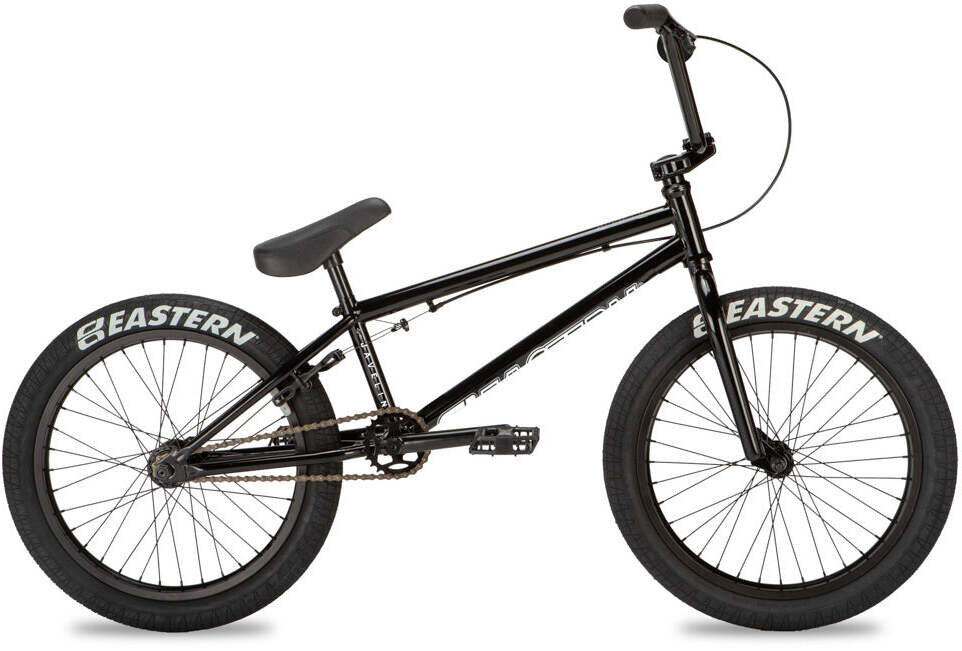

  • Color | Size: Black | 20-inch
  • Color | Size: Hot Blue | 20-inch
  • Color | Size: Orange | 20-inch
  • Color | Size: Tan/Camo | 20-inch

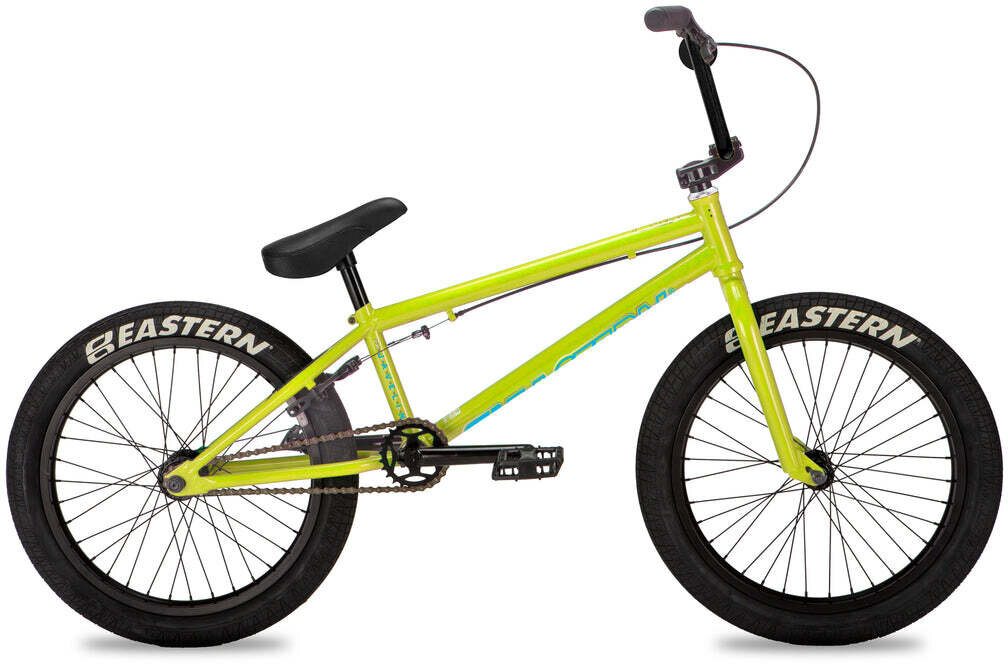

Neon Yellow
Please select options Unavailable
This item is not permitted to be shipped, however it can be purchased online and picked up in store. We will notify you when it's ready for pick up.


The eastern javelin is a beginners bike with a little extra. The javelin features a rugged steel frame w/ chromo down tube, sealed front & rear hubs for a long-lasting smooth ride. Sealed bearing integrated headset, a 3-piece chromoly cranks, eastern grips, pedals, and sprocket.

Geo Chart

Geometry Chart:
Top Tube Length (IN) 20.5
Chain Stay Length (IN) 13.38
SizeHeight (inches)
20-inch 5’0” - 5’8”


Frame Hi-Tensile Steel with Chromoly Down Tube, Mid BB, Internal Headset
Fork Chromoly Steerer Tube with Hi-tensile steel Tapered legs, 3/8" dropouts
Rims Alloy, Double Wall, Drilled for 36 Spokes
Hubs Front: Sealed Bearings, Forged Alloy Shell, Drilled for 36 Spokes, 3/8" Chromoly Axle
Rear: Sealed Bearings, Forged Alloy Shell Drilled for 36 Spokes, 14mm Chromoly Axle
Spokes 14 Gauge with Brass Nipples
Tires Eastern OEM 20 x 2.40
Bottom Bracket Sealed Bearing Mid
Crankset 3-Piece, Tubular Heat-Treated Chromoly, Bolt for Sprocket, Pinch Bolt with 8-Splined Spindle, 170mm 28.6mm Round Arm
Chainrings Eastern Phorcys, Cold Hard Steel, 25T
Cassette/Freewheel 9 Tooth Driver with Hub
Chain KMC Z510 1/2 x 1/8
Brakes U-Brake, Forged Alloy, Wide Body, Clear Brake Pads
Brake Levers Forged Alloy Lever
Handlebars Hi-Ten 8.5" Upsweep/Backsweep 12°/1°
Tape/Grips Eastern Riblet Grips
Stem Forged Alloy Top Load Stem
Headset Integrated 45°X45° Sealed Cartridge Bearing
Seatpost Comes with seat
Saddle Medium Width Seat/ Post Combo
Pedals Eastern Atom Plastic Pedal with 9/16" Axle

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Neon Yellow / 20-inch 696836895387 00-202661 210000018504
